ROTARY MICROTOME RAZOR
Fabricated out of grain tool steel, heat treated and tested for micro structures, both slide wedges with back & handle.
size(mm)120,140,160

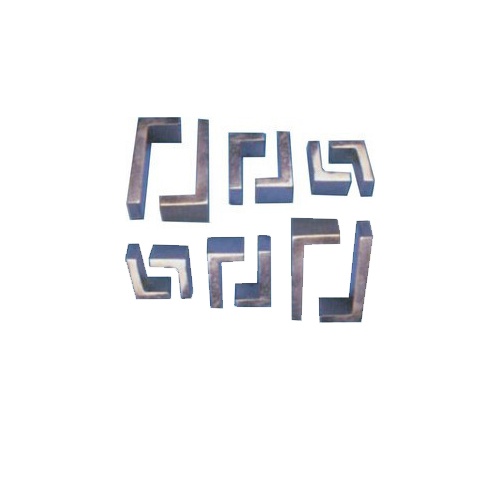

L-MOULDS (Embedding Moulds)
Made of brass alloy heavy duty and polished.
size(mm)
37 x 25 x 15 pair
50 x 25 x 15 pair
75 x 30 x 19 pair
BONE & MEAT CUTTING MACHINE
Useful for preparing specimen of big size in Anatomy and Meat Departments. Fitted with large moving table and extension table operated on four ball-bearing rollers. Used extensively in the meat packing, and wholesale fish industry, for handling sword fish and large halbutes etc.
The table is made of thick S.S. Sheet with special heavy axles for easy and firm movement. Supplied complete with one blade, starter, cord and plug, work on 220 V, single phase, AC supply.
Size of Cutting Table785x585 mm
Total Table Travel1245 mm
Extension Table455x760 mm
Size of Wheel455 mm
Height1700 mm

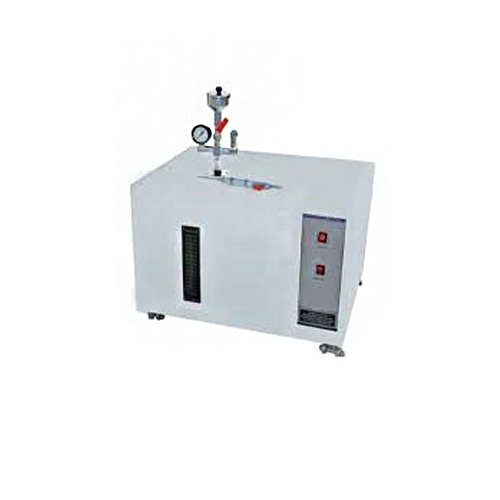

Cadaverous Injector
For injection formaldehyde solution in cadaverous at much higher speed than normal gravity process. Unit is fully covered mounted on a portable trolley having four castor wheels for easy movement. Unit consists of one air compressor fitted with 1/2, hp motor which is connected a with stainless steel tank of 10 liters capacity meant for storing and injecting the solution. Tank is fitted with a safety valve, pressure gauge and rubber tubing having provision for injection. Supplied complete with electric cord, plug and works on 220 Volts, single phase 50 Hz power supply.
read more...
U.v. Chromatography Inspection Cabinet
It has double door at front, allowing wide range for storage of various seeds under controlled conditions of temperature and humidity. This double walled unit has outer chamber made of M. S. Duly enamel painted and inner chamber is made of stainless steel.
u.v.tube365 mm long wave
power220 v ac
colorblack & white
DESTRUCTOR INCINERATOR (Electrical)
Electrically or oil fired incinerator (only first two sizes can be supplied fully electrically operated and other sizes shall be supplied oil fired (LDO). These incinerators are suitable for inciration of pathological waste. Cost of chimney included.
a)5-8 Kg.
b)10-15 Kg.
c)25-35 Kg.

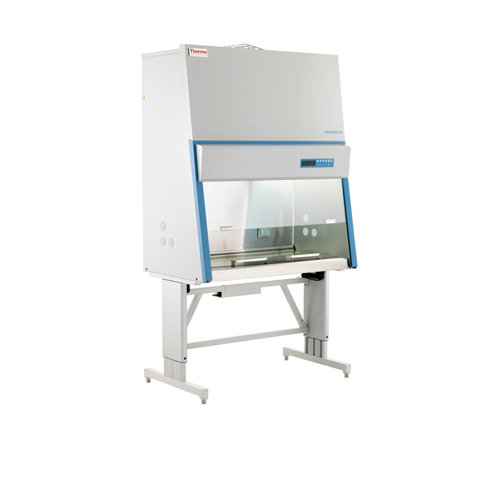

BIOLOGICAL SAFETY CABINET
The cabinets are fabricated out of thick board duly laminated sheet clad. The work table is made of heavy gauge stainless steel sheet and is fitted with U.V. germicidal Light, static pressure manometer, Exhaust system (suitable for 6 feet duct) and virus burn out unit. Side panels are made out of thick transparent flexi glass duly framed. The unit is fitted with pre- filter and HEPA filter. Air is drawn through pre- filter and is made to pass through highly effective HEPA (High efficiency particular Air) filter heaving efficiency retaining all air borne particles of size 0.3 micron and larger. Using a dynamic balancing machine, the bowler and the motor assembly is statically and dynamically balanced. Motor of 1/5 H.P. Capacity operates with minium noise level. The working area is illuminated by fluorescent lighting fitted to the unit. In addition to the above features of a standard vertical Laminar Flow Bench, the, EDUTEKTM Bio-safe cabinets has arrangement for recirculating a part of the air thus creating highest level of clean air. The unit is also convertible to the conventional vertical laminar flow bench with download air flow by fitting the sliding front door upwards. Air is sucked through the pre-filter and the excess aor is thrown out from the trough a HEPA filter of size 1x1x6. Supplied with glove ports and gauntlets, HEPA filter, pre-filter, U.V. Light and fluorescent light.
specification
working size2x2x2 3x2x2 4x2x2 6x2x2
size of HEPA filters2x2x6X3x2x6 4x2x6 3x2x6
No of HEPA filters1 1 2 2
illumination1x20W 1x20W 1x30W 1x30W
optional
Virus burn out unit
Exhaust Ducting (per running feet)
Gas Burner

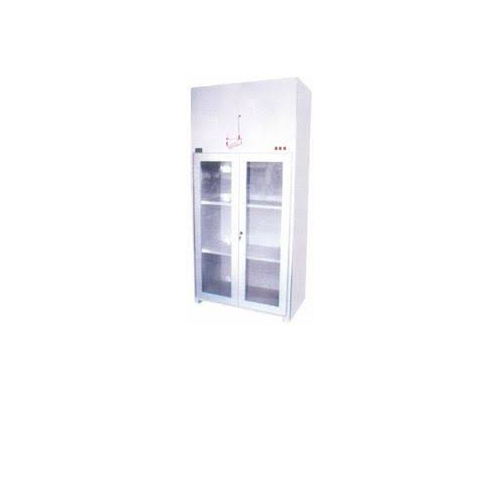

Garment Storage Cabinet (vertical Flow)
Self standing providing dawn flow air to clean room garments. Recommended in clean room for storage of materials. Suitable for pharmaceuticals, hospitals and o/t, electronic industry etc. Supplied complete with hepa filter & pre filter, motor etc. But with static pressure manometer, u. V. Germicidal light, flourescent light.
Working size3x2x54x2x5
Size of HEPA filters3x1x64x1x6
No. Of HEPA filters1 1
No. Of pre filter1 2
