Standard double wall fabrication. Inner chamber made of richly anodized aluminum or highly polished stainless steel sheet. Exterior fabricated out of thick milled steel sheet duly finished in shoved enamel off white paint or pastle mat finish colour combination.
wire heating elements provided on three sides attain quick and uniform heating in range of 50°C to 250°C, controlled by capillary type thermostat. L-shaped thermometer is built-in type. Control panel is provided with selector switch of high or low rates of power, thermostat control Knob and indicators for mains & thermostat. Supplied with cord and plug. The equipment is suitable to operate on 220 V AC 50 Hz single phase.
OPTIONALS : Air circulating fan. Timer 0-24 hours Digital temperature Indicator. Digital temp indicator-cum-Controller
chambershelvescapacity 300 x 300 x 300228 ltrs 350 x 350 x 350245 ltrs 450 x 450 x 450295 ltrs 600 x 450 x 4502125 ltrs 600 x 600 x 6002224 ltrs 900 x 600 x 4502252 ltrs 900 x 600 x 6002336 ltrs 900 x 900 x 9003480 ltrs

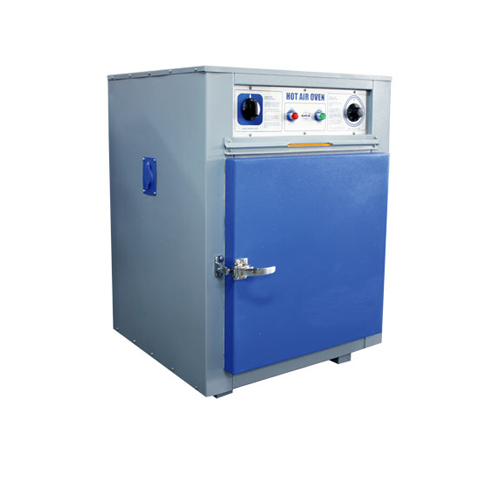

Standard double wall fabrication. Inner chamber backed silver paint finish and exterior finished in hammertone. Heavy duty forced air blowers are provided to constantly circulated hot air to achieve uniform temp. In the whole chamber. Double wall door is mounted on heavy hinges and provided with heavy moulded latch.
Temperature is controlled by a thermostat and it can be read on dial type thermometer. Temperature range: 50o C to 250o 2oC to 5oC and equipment is workable on 220 workable on 220V AC 50Hz single phase or 440 volts AC supply.
chambr sizea) 900 x 600 x 600 (36x24x24") b) 1200 x 900 x 600 (48x36x24") c) 1500 x 900 x 900 (60x36x36") d) 1800 x 1200 x 900 (72x48x36") optionalI) Timer 0-24 hours. II) Digital temp. Indicator -cum-Controller. materialThick mild steel sheet
Standard sturdy double wall fabrication. Inner & outer chamber made out of thick mild steel sheet. Inner chamber backed silver paint finish and exterior finished in hammertone. Heavy duty forced air blower are provided to constantly circulate hot air to achieve uniform temperature in the hole chamber. Double wall door is mounted on heavy hinges and provided with heavy moulded latch.
Temperature is controlled by a thermostat and it can be read on dial type thermometer. Temperature range: 50oC to 250oC 2oC to 5oC and equipment is workable on 220 V AC 50Hz single phase or 440 volts A C supply.
chamber sizea) 300 x 300 x 300
b) 350 x 350 x 350
c) 450 x 450 x 450
d) 600 x 450 x 450
e) 600 x 600 x 600
tray capacity8 trays of 16x32x1 size
12 trays of 16�x32�x1 size
24 trays of 16�x32�x1 size
48 trays of 16�x32�x1 size
96 trays of 16�x32�x1 size
optionalTimer 0-24 hours
Digital temp. Indicator-cum-Controller.
Aluminum Tray 16�x32�x1� size.
Double walled construction. Inner round chamber made out of stainless steel, exterior made out of mild steel duly finished in white stoving enamel/powder coated paint with mat finished colour combinations. Temperature range 50oC to 130o, 3oC. The body capable of with standing vacuum of 760 mm hg. Workable on 220V AC 50 Hz single phase. Supplied without Vacuum pump.
chamber size250x300, 300x300, 300x500 ltrs size12, 17, 40 optional sizeTimer 0-24 hours.
Imported Thermostat German, Accuracy of 0.1A, °C.
digital temp. Indicator-cum-Controller.
Microprocessor PID digital temp. Indicator-cum-controller.

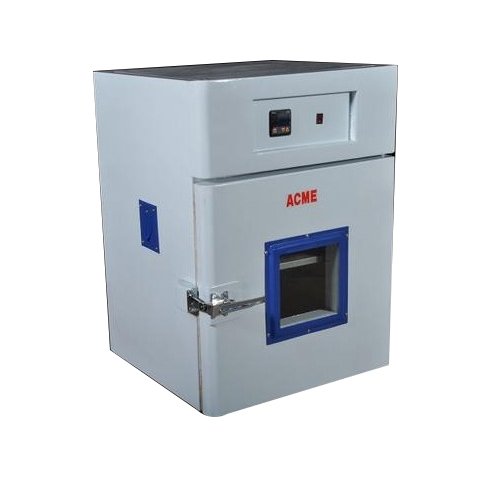

Standard double wall fabrication. Inner chamber made of richly anodized aluminum or highly polished stainless steel sheet and outer made out of thick mild steel finished in white stoving enamel/powder coated paint with mat finished colour combinations. Double wall door with double glass window for observation in the chamber. Temperature range 5A,° C above ambient to 80A, ° C A, ± 1A, ° C controlled by a thermostat. The equipment is workable on 220V Ac 50 Hz single phase.
(Chambers size in mm/Inches) No. of Capacity H W D (Approx.) Shelves (Approx)
a) 300 x 300 x 300 2 28 ltrs.
b) 350 x 350 x 350 2 45 ltrs.
c) 400 x 400 x 400 2 65 ltrs.
d) 450 x 450 x 450 2 95 ltrs.
e) 600 x 450 x 450 2 125 ltrs.
f) 600 x 600 x 600 2 224 ltrs.
g) 900 x 600 x 450 2 252 ltrs.
h) 900 x 600 x 600 2 336 ltrs.
i) 900 x 900 x900 3 480 ltrs.
i) Air circulating fan.
ii) Timer 0-24 hours
iii) Imported Thermostat "JUMO"� German with the accuracy of +0.5oC.
iv) Digital temp indicator-cum-Controller.
v) Microprocessor PID digital temp. Indicator-cum-controller.

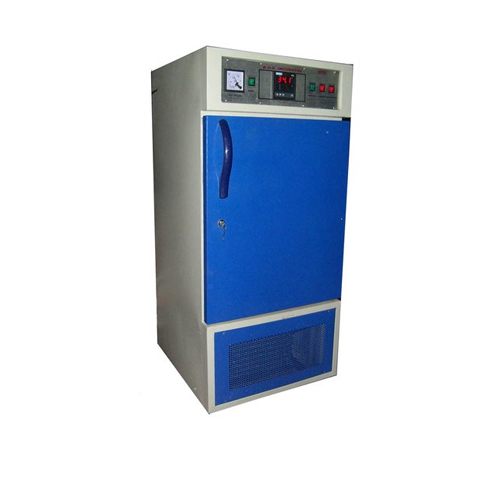

Double wall construction. Inner chamber made richly anodized aluminum or highly polished stainless steel sheet. Supplied with two/three removable perforated shelves. Exterior made out of thick mild steel sheet duly finished in write stoving enamel/powder coated paint with mat finished colour combination. Outer double wall door is provided with magnetic gasket and lock & key arrangement. Inner door unbreakable acrylic transparent sheet for inspection of material in the chamber without disturbing the chamber temperature. Door operated inner illumination has been provided. Temperature is controlled by Delux Digital Controller from 5oC to 50o 0.5o C. Standard cooling unit with a sealed compressor with protective devices has been provided below the chamber for safe and efficient working. Heating arrangement has been made with in the chamber for higher temperature working. Inner air circulating system is provided to achieve uniform temperature. A control panel is provided with various indicat ors, on-off switch. Supplied with cord and plug etc. To work on 220V AC 50 Hz single phase.
i) Timer 0-24 hours day night cycle.
ii) Co2 /air mixer nozzle is provided.
iii) Internal illumination with 3 fluorescent tubes.
iv) Microprocessor PID digital temp. Indicator-cum-controller.
v) Automatic Voltage stabilizer 3-5 KVA (recommended-must).
Inner Chamber Sizes in mm W x D x H (Approx.)CapacityCapacity 405 x 405 x 4052.4 Cu. Ft.65 ltrs 455 x 410 x 6104 Cu. Ft.112 ltrs 505 x 415 x 8306.1 Cu. Ft.171 ltrs 565 x 565 x 86510 Cu. Ft.280 ltrs 650 x 580 x 90012 Cu. Ft.336 ltrs 700 x 650 x 90015 Cu. Ft.420 ltrs
Standard double wall construction. Outer chamber made out of mild steel finished in white stoving enamel/powder coated paint with mat finished colour combinations. Inner chamber made of stainless steel sheet. The double door is provided with double glass full view window. Interchangeable platform has been provided.
i) Timer 0-24 hours.
ii) Imported Thermostat
iii) digital temp. Indicator-cum-Controller.
Iv) Microprocessor PID digital temp. Indicator-cum-controller.

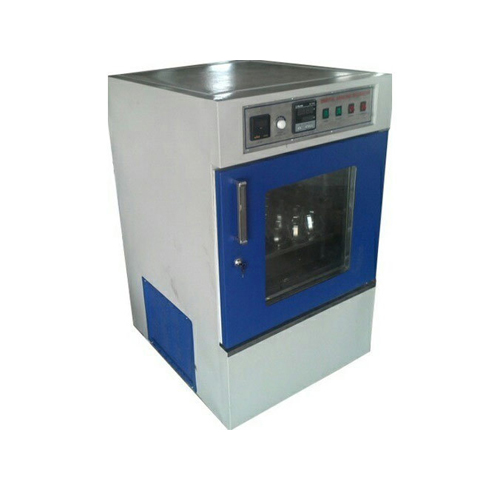

Temperature Range5°C above ambient to 60°C + 1°C Speed ControlUpto 200 rpm Power Supply220V Ac 50Hz single phase capacity16x500 ml conical flasks
Designed for vast number of incubation applications. Can be installed even in hallway room or wherever convenient. Design feature includes enameled mild steel sheet exterior, aluminium / stainless steel, interior ventilators, internal lighting, exhaust fan etc. Suitable insulated 300 mm sq. Inspection window at the door permits inside view with -out opening the door. Complete with panel. Pre fabricated at factory assembled at site. Complete with cord and plug to work on 220 V single phase 50 Hz power supply. Temperature range from 5A,° C above ambient to 60A,° C A,± 1A,° C. Controlled by digital indicator -cum -controller.
W x H x D
a) 1.2x2.3x1.2 meter
b) 2.3x2.3x2.3 mete
